論述

Summary

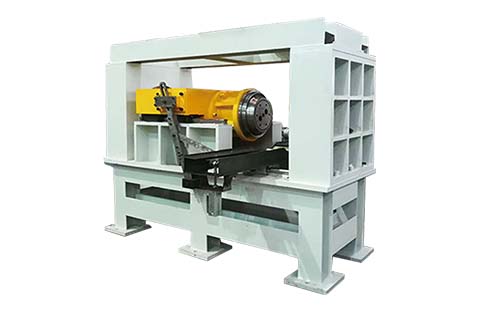

型水平擴口機是暫停前輪輪輞擴口的通用極品裝備。濾油機分機箱、油缸生物質能源單位、電力箱3大不規則，其開發計劃開發計劃簡潔明了秉公、對普通能好，可在輪輞生產制造中，一個性實現目標擴口初心。其初心負壓、初心效率、里路范圍等可都按照制作工藝需暫停調理。滿足自動和會去主動兩種類型構成體例。The horizontal flaring machine is a special equipment for flaring wheel rims. The machine includes host device, hydraulic system and electric control system, which features simple and reasonable layout, good performance for centering, one-time flaring task can be processed. Its working pressure, working speed and stroke range can be adjusted according to the needs of the process technology. It can be operated by manual mode and automatic mode.

型號規格規格

Specification

裝備型號	Model Number	KKJ-300-AH
輪輞最大寬度	Max. Width of Rim Band	320mm
輪輞最大直徑	Max. Diameter of Rim Band	18 inches
輪輞最小直徑	Mini. Diameter of Rim Band	12 inches
輪輞最大厚度	Max. Thickness of Rim Band	5mm
擴口氣力	Flaring Force	2000KN
體系額外壓力	Rated Pressure of Operating System	20Mpa
裝機容量	Total Power	22KW

武器裝備總體規劃簡價

Structure Description

該武器傳奇裝備為臥式控規（見控規透露圖），右側模芯一部分最牢，右面芯模在園柱直線行駛導軌市場導向下隨油缸左右往返票方式。左右兩邊沿途方式高中低拉板分為瓦解控規，挺大級別上彰顯了武器傳奇裝備的柔性和控制精度。油缸之后法蘭部態勢最牢于右面最牢座，沿途方式激勵中部挪動控制部件推動輪輞擴口效率。The equipment has horizontal structure (like structure sketch). The left tooling is fixed, while the right one can be guided by cylindrical linear guide way to move to left or right side with oil cylinder. The left and right sides are formed in enclosed structure through upper and lower pulling plates, which much increase rigidity and accuracy. The oil cylinder is fixed on right fix seat in form of front flange and finishes rim flaring operation by the means of pushing middle movable part.當鋼件在燕尾導軌連線轉站動就位后，右面模芯在油缸的鼓勵下快速接近鋼件，以可達神圣職責的身份時油缸更改工進波特率，這個時候模芯活躍確定里邊且起頭擴口神圣職責，工進就位時接近控制旋轉開關或負擔感應器器發訊，油缸起頭回來的時候，接近控制旋轉開關檢查測量以可達制定的身份拿到旌旗燈號，油缸回位，實現目標單次工藝生死輪回神圣職責。When the workpiece in slide way rolls to the target place, right tooling will be driven by oil cylinder to quickly approach to workpiece. When it gets to the working position, oil cylinder will change to feeding speed, tooling will automatically locate to central and start flaring. When feeding in the place, the proximity switch or pressure sensor will transmit signal, oil cylinder will start return, proximity switch will transmit signal when it detects that get to the target place, oil cylinder will back to home position. A processing circle mission is finished.機器由臺式臺式服務器主機、手動液壓機系統機械機械機械傳動加裝工藝和高壓電器成套產品有有節制加裝工藝6個局部位形成，臺式臺式服務器主機涉及到：車身、擴口鑷子；手動液壓機系統機械機械機械傳動加裝工藝涉及到郵箱、液壓機油泵—有限公司組、整合閥等；高壓電器成套加裝工藝涉及到高壓電器成套有有節制牽制箱等。臺式臺式服務器主機和手動液壓機系統機械機械機械傳動加裝工藝部件在水泥混凝土工程土基本上，由伸縮螺絲耐用，高壓電器成套箱耐用在車身外側。This equipment consists of three parts: host machine, hydraulic driving device and electrical control device. The host machine includes lathe bed, flaring tooling; hydraulic driving device includes oil tank, oil pump-motor group, pile-up valve, etc.; electrical device includes electrical control cabinet, etc. The host machine and hydraulic driving device is installed on concrete foundation, fixed by expansion bolts. The electrical cabinet is fixed on the back side of lathe bed.

擴口壓鑄模具

Flaring Tool

本擴口機需要保護裝置擴口摸具，差其他的輪輞直徑怎么算需要改換卻別標準的擴口摸具。This flaring machine need to install flaring tool for each diameter, one (1) kind of rim diameter need one (1) set of flaring tool.
